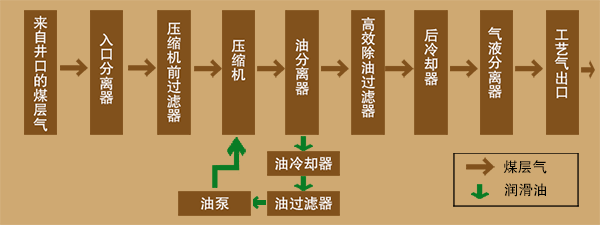

煤层气、火炬气、沼气、富气、天然气螺杆式压缩机工艺流程框图：
机组适用条件:
| 项目 | 参数 |
|---|---|
| 入口压力 Mpa(G) inlet pressure Mpa(G) | 0～0.5 |
| 出口压力 Mpa(G) outlet pressure Mpa(G) | 0.2～4.5 |
| 入口温度 ℃ inlet temperature ℃ | 5～40 |
| 出口温度 ℃ outlet temperature ℃ | ＜50 |
| 流量调节范围 % Flow regulation range % | 15～100 |
| 压缩机流量调节方式 Flow regulation mode of compressor | 滑阀 Slide valve |
技术参数表:
| 型号 Model | 容积流量 Capacity Nm³/d | 主电机功率 Power KW | 压缩形式 Type | 压缩介质 Medium | 吸气温度 Inlet temperature ℃ | 排气温度 outlet temperature ℃ | 吸气压力 Inlet pressure MpaG | 排气压力 Discharge pressure MpaG | 电机防爆等级 Explosion grage | 电机防护等级 Protection grade |
|---|---|---|---|---|---|---|---|---|---|---|
| SN12-18.5(22)F | 5000 | 18.5～22 | 微油双螺杆单级压缩 single stages screw compress | 煤层气、天然气 | ～20 | ～环境温度+15 Ambient temperature +15 | 0～0.004 | 0.2～0.3 | ExdⅡBT4 | IP54 |
| SN16S-22(30)F | 7500 | 22～30 | ||||||||
| SN16M-30(37)F | 12500 | 30～37 | ||||||||
| SN20S-45(55)F | 16500 | 45～55 | ||||||||
| SN20M-55(75)F | 25000 | 55～75 | ||||||||
| SN20L-75(90)F | 32500 | 75～90 | ||||||||
| SN255-110F | 40000 | 110 | ||||||||
| SN25M-132F | 50000 | 132 | ||||||||
| SN25L-160F | 61000 | 160 | ||||||||
| SN32S-185(220)F | 76000 | 185～220 | ||||||||
| SN32M-220(250)F | 100000 | 220～250 | ||||||||
| SN32L-250(315)F | 113000 | 250～315 | ||||||||
| SN40S-355(400)F | 140000 | 355～400 | ||||||||
| SN40M-400(450)F | 16500 | 400～450 | ||||||||
| SN12-30(37)F | 10000 | 30～37 | 煤层气、天然气、沼气 | 0.1 | 0.5～0.7 | |||||
| SN16S-45F | 15000 | 45 | ||||||||
| SN16M-55(75)F | 25000 | 55～75 | ||||||||
| SN20S-75(90)F | 33000 | 75～90 | ||||||||
| SN20M-110(132)F | 50000 | 110～132 | ||||||||
| SN20L-132(160)F | 61000 | 132～160 | ||||||||
| SN25S-160(220)F | 75000 | 160～220 | ||||||||
| SN25M-220(250)F | 100000 | 220～250 | ||||||||
| SN25L-280(315)F | 120000 | 280～315 | ||||||||
| SN32S-315(400)F | 150000 | 315～400 | ||||||||
| SN32M-400(500)F | 200000 | 400～500 | ||||||||
| SN32L-450(630)F | 230000 | 450～630 | ||||||||
| SN40S-560(800)F | 290000 | 560～800 | ||||||||
| SN40M-630(900)F | 335000 | 630～900 | ||||||||
| SN12-37(45)F | 8300 | 37～45 | 0.05 | 0.9～1.2 | ||||||
| SN16S-55(65)F | 11300 | 55～65 | ||||||||
| SN16M-75(90)F | 17500 | 75～90 | ||||||||
| SN20S-110(132)F | 24100 | 110～132 | ||||||||
| SN20M-132(160)F | 35000 | 132～160 | ||||||||
| SN20L-185(220)F | 46500 | 185～220 | ||||||||
| SN25S-220(250)F | 57600 | 220～250 | ||||||||
| SN25M-280(315)F | 72700 | 280～315 | ||||||||
| SN25L-355(400)F | 90000 | 355～400 | ||||||||
| SN32S-400(500)F | 109100 | 400～500 | ||||||||
| SN32M-500(630)F | 135700 | 500～630 | ||||||||
| SN40S-800(900)F | 202000 | 800～900 | ||||||||
| SN1612-160F | 40000 | 160 | 微油双螺杆双级压缩 Double atages screw compress | 煤层气、天然气 | 0.2 | 2.0 | ||||
| SN2016-280F | 77500 | 280 | ||||||||
| SN2520-560F | 150000 | 560 | ||||||||
| SN3225-1250F | 350000 | 1250 | ||||||||
| SN2016MR-385F | 70000 | 185+200 | 微油双螺杆双级撬块压缩 One package-two stages screw compress | 4.0 | ||||||
| SN2525MR-755F | 150000 | 355+400 | ||||||||
| SN3232MR-1510F | 300000 | 710+800 | ||||||||
| SN4032MR-2650F | 521000 | 1400+1250 | ||||||||
| 型号 Model | 容积流量 Capacity Nm³/d | 主电机功率 Power KW | 压缩形式 Type | 压缩介质 Medium | 吸气温度 Inlet temperature ℃ | 排气温度 outlet temperature ℃ | 吸气压力 Inlet pressure MpaG | 排气压力 Discharge pressure MpaG | 电机防爆等级 Explosion grage | 电机防护等级 Protection grade |
型号中后缀F代表风冷，后缀Z代表水冷；电压:380V、6000V、10000V可选。
所有机器均为PLC智能微电脑控制。
